Solid Tubular Box Wrenches 260002

SOLID TUBULAR BOX WRENCHES 260002

Standard
Code No. 260002

DIN 896 form A
ISO 2236, ISO 1085
NFE 74.304

Heavy Duty Pattern, Hot forged, Profiled for Hexagon Shank, manufactured from Chrome vanadium Steel (31CrV3), full hardened, Head Polished and Ni Cr Plated.

These are from hexagon shaft holes for turning either with a spanner or a Tommy Bar. The hollow center permits access to the nuts fitted with long bolts.

Download Brochure [21 MB]

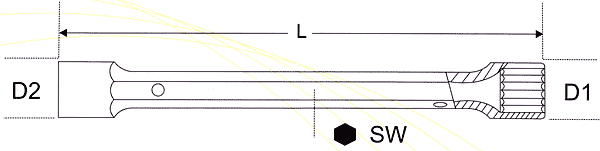

Solid Tubular Box Wrenches 260002 Line Drawing

Solid Tubular Box Wrenches 260002 - Undermaking

Solid Tubular Box Wrenches 260002
